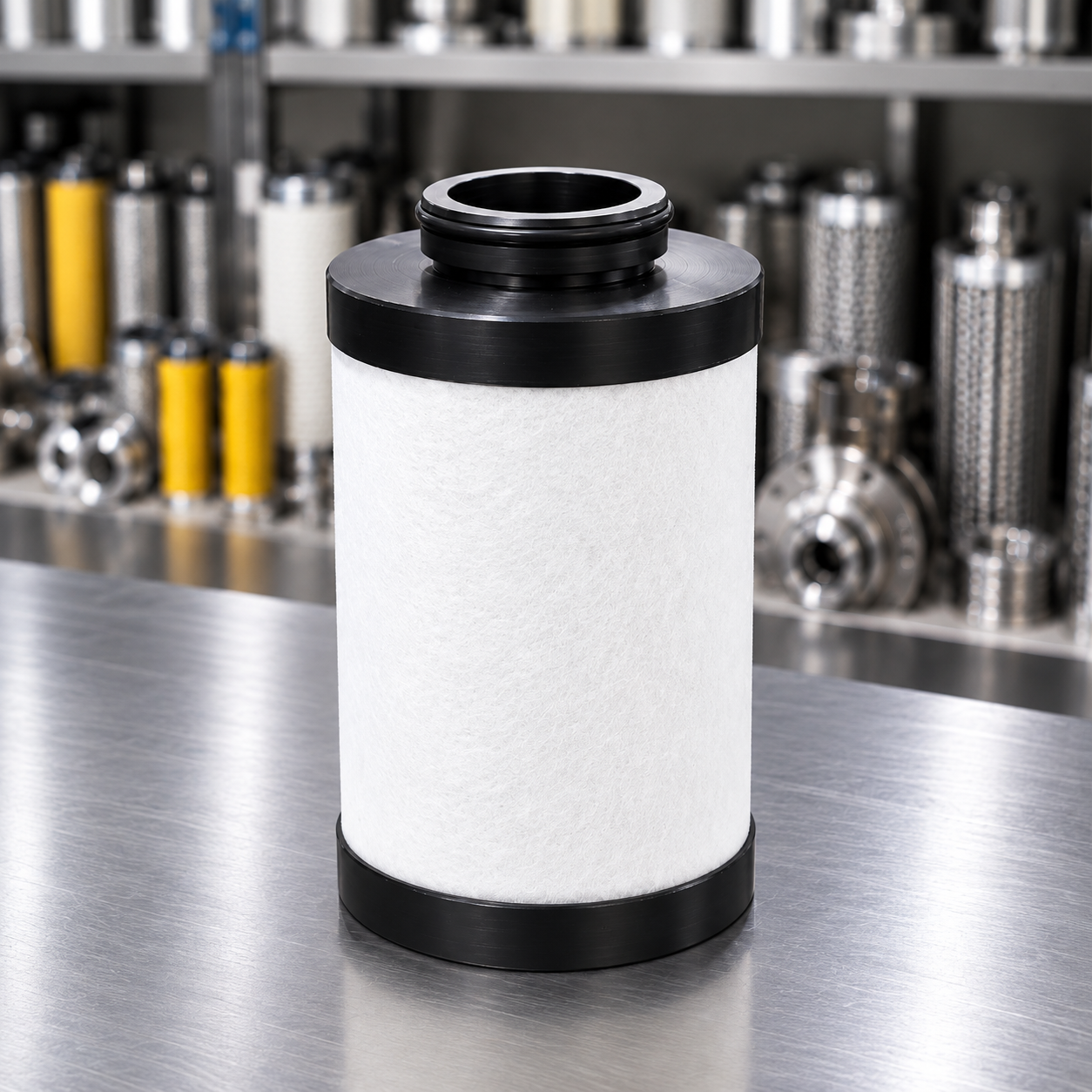

Top 10 Hydraulic Filter Manufacturers in India | ABC Filters

Top 10 Hydraulic Filter Manufacturers in India
whatsapp-now
enquire-now

ABC Filters Pvt. Ltd. Is leading Hydraulic Filter Manufacturers, Suppliers, Dealers and Exporters in India. A hydraulic filter is an essential component used to remove harmful contaminants from hydraulic fluid and protect pumps, valves, cylinders, and other hydraulic components. Effective hydraulic filtration helps maintain fluid cleanliness and supports reliable system performance.

We provide hydraulic filter solutions designed for different operating conditions, flow requirements, pressure levels, and filtration needs. Our hydraulic filter assembly can include a suitable filter housing, filter element, indicators, valves, and connections according to the application.

Proper hydraulic oil filtration is important because particles, wear debris, dust, water, and other contaminants can affect hydraulic components. Selecting the correct hydraulic filter, micron rating, flow capacity, and filter media helps improve contamination control and system reliability.

Types of Hydraulic Filters

As we are leading Hydraulic Filter Manufacturers in India, our Types are designed to meet different application requirements and industry standards, including the following types:

  • Technical Details: A pressure line filter is installed downstream of the hydraulic pump to remove particulate contaminants before hydraulic fluid reaches sensitive components. It is selected according to operating pressure, flow rate, micron rating, filtration efficiency, filter capacity, and allowable pressure drop.
  • Where Used: Pressure line filters are commonly used in hydraulic power units, industrial machinery, mobile hydraulic equipment, servo systems, proportional valve circuits, and applications requiring protection of downstream hydraulic components.
  • 2. Return Line Filter:
    • Technical Details: A return line filter removes contaminants from hydraulic fluid before it returns to the reservoir. Its design and sizing depend on return flow rate, operating pressure, filter capacity, micron rating, filter media, and pressure-drop requirements.
    • Where Used: Return line filters are widely used in hydraulic power units, construction equipment, hydraulic presses, injection molding machines, agricultural machinery, and industrial hydraulic systems.
  • 3. Suction Line Filter:
    • Technical Details: A suction line filter is installed before the hydraulic pump and is primarily intended to capture larger contaminants before they enter the pump. Because it operates on the pump inlet side, low flow restriction and suitable pressure-drop characteristics are important considerations during selection.
    • Where Used: Suction line filters are commonly used in hydraulic reservoirs, power units, mobile hydraulic equipment, lubrication systems, and other circuits where pump inlet protection is required.
  • 4. Offline Filtration Filter:
    • Technical Details: An offline filtration filter operates through a separate circulation circuit that continuously removes contaminants from hydraulic fluid without depending entirely on the main hydraulic circuit. The system can include a dedicated pump, filter housing, filter element, and flow-control components.
    • Where Used: Offline filtration systems are commonly used in industrial hydraulic machinery, large hydraulic power units, reservoirs, manufacturing equipment, and applications requiring continuous hydraulic fluid cleanliness control.
  • 5. Bypass Filtration:
    • Technical Details: Bypass filtration diverts a controlled portion of hydraulic fluid through a dedicated filtration element while the remaining fluid continues through the main hydraulic circuit. It can use fine filtration media to provide additional particle removal and improve overall fluid cleanliness.
    • Where Used: Bypass filtration is commonly used in industrial hydraulic systems, lubrication circuits, heavy-duty machinery, hydraulic power units, and applications requiring additional contamination control.
  • 6. Kidney Loop Filtration:
    • Technical Details: Kidney loop filtration uses an independent pump and filter circuit to continuously circulate hydraulic fluid from a reservoir through a filtration system. This arrangement allows fluid conditioning to take place separately from the main hydraulic circuit.
    • Where Used: Kidney loop filtration is commonly used in large hydraulic reservoirs, industrial machinery, hydraulic power units, manufacturing equipment, and systems where maintaining reservoir cleanliness is important.
  • 7. Duplex Filter:
    • Technical Details: A duplex filter incorporates two separate filtration chambers within a common housing arrangement. The system can be configured to transfer filtration from one element to the other, allowing one element to be serviced while the other remains available for operation where the system design permits.
    • Where Used: Duplex filters are commonly used in continuous-duty hydraulic systems, industrial machinery, lubrication systems, power-generation equipment, marine equipment, and applications where filter servicing needs to be managed without interrupting filtration.
  • 8. High-Pressure Filter:
    • Technical Details: A high-pressure filter is designed for hydraulic circuits operating under elevated pressure conditions. The filter housing, seals, connections, and pressure filter element are selected according to operating pressure, maximum pressure, flow rate, micron rating, fluid compatibility, and allowable pressure drop.
    • Where Used: High-pressure filters are commonly used in hydraulic presses, heavy-duty industrial machinery, mobile hydraulic equipment, hydraulic power units, and high-pressure circuits requiring reliable contamination control.
  • 9. Return-Suction Filter:
    • Technical Details: A return-suction filter arrangement combines filtration requirements associated with the return and suction sides of a hydraulic system. Selection depends on pump inlet requirements, return flow, filter capacity, contamination level, micron rating, and pressure-drop characteristics.
    • Where Used: Return-suction filtration arrangements can be used in hydraulic power units, mobile hydraulic equipment, industrial machinery, specialized hydraulic circuits, and systems requiring filtration at both return and pump inlet stages.
  • 10. Stainless Steel Hydraulic Filter:
    • Technical Details: A stainless steel hydraulic filter uses stainless steel for selected housing, mesh, or filter components where corrosion resistance, durability, and mechanical strength are required. Stainless steel mesh, wire mesh, and specialized filter media can be selected according to particle size, flow capacity, fluid compatibility, and operating conditions.
    • Where Used: Stainless steel hydraulic filters are commonly used in demanding industrial environments, specialized hydraulic systems, chemical-processing equipment, marine applications, and other installations where corrosion-resistant filtration components are required.

Detailed Hydraulic Filtration Process

A step-by-step overview of the complete process, highlighting our expertise as leading Hydraulic Filter Suppliers in India and our commitment to delivering reliable solutions.

  • Fluid entry: Contaminated hydraulic fluid enters the hydraulic filter through the designated inlet connection.
  • Initial flow distribution: The filter housing directs fluid toward the hydraulic filter element while maintaining controlled flow through the filtration media.
  • Particle capture: The filter media retains particles and contaminants according to its designed filtration characteristics.
  • Clean fluid outlet: Filtered hydraulic fluid exits the element and returns to the hydraulic circuit or reservoir.
  • Contamination accumulation: As contaminants collect on the media, filter resistance and differential pressure can increase.
  • Condition monitoring: A hydraulic filter clogging indicator or differential pressure indicator can provide an indication of increasing restriction.
  • Element replacement: When the element reaches its service condition, hydraulic filter replacement restores the required filtration performance.

Technical Specifications of Hydraulic Filters

As a trusted Hydraulic Filter Dealers in India, we serve businesses across various industries that meet professional visual communication requirements.

Technical Parameter Specification
Filter Media Glass Fibre / Synthetic / Cellulose / Wire Mesh
Filtration Grade Nominal / Absolute
Micron Rating 1–100 Micron
Filtration Efficiency As per Filter Design
Flow Capacity Up to 450 L/min
Rated Pressure Up to 210 Bar
Burst Pressure Up to 300 Bar
Pressure Drop Application Dependent
Filter Element Pleated / Replaceable / Washable
Filter Construction Pressure / Return / Suction
Housing Material Steel / Stainless Steel / Aluminium
Seal Material NBR / Viton / EPDM
Connection Type Threaded / Flanged / Push Fit
Flow Direction Inside-Out / Outside-In
Dirt Holding Capacity As per Filter Media
Compatible Fluids Hydraulic / Synthetic / Mineral Oils
Service Life Application Dependent
Operating Temperature Range -20°C to +120°C
Oil Carryover Low / Application Dependent

Features and Benefits of Hydraulic Filters

As Hydraulic Filter Exporters in India, our products provide several Features and Benefits including consistent quality, smooth finish, and long service life.

Features Benefits
Multiple installation configurations Supports different hydraulic circuit designs
Replaceable filter elements Simplifies routine servicing
Multiple filtration media Allows application-specific filtration
Differential pressure indicators Helps monitor filter condition
Bypass valve options Supports controlled fluid flow when restriction increases
Duplex housing options Can simplify servicing in suitable applications
Fine filtration capability Helps control smaller contaminant particles
Robust filter housing Supports demanding hydraulic environments
Flexible flow capacities Allows selection for different hydraulic systems
Contamination control Helps maintain hydraulic fluid cleanliness

Applications of Hydraulic Filters

As Hydraulic Filter Manufacturers in India, our all types are used in various types of industrial sectors such as:

  • Mobile Hydraulic Equipment: Mobile hydraulic filter systems are used in equipment where hydraulic circuits operate under changing loads, environmental conditions, and duty cycles.
  • Construction Equipment: A construction equipment hydraulic filter helps control contamination in hydraulic systems used for demanding construction operations.
  • Excavators: An excavator hydraulic filter helps protect hydraulic pumps, valves, motors, and cylinders by controlling particulate contamination in the hydraulic fluid.
  • Industrial Machinery: An industrial hydraulic filter can be used in manufacturing machinery requiring consistent hydraulic fluid cleanliness and reliable operation.
  • Hydraulic Presses: A hydraulic press filter helps control contaminants in hydraulic circuits used for forming, pressing, molding, and related industrial operations.
  • Marine Equipment: Marine hydraulic filter systems can be selected for hydraulic equipment operating in marine environments where material compatibility and contamination control are important.
  • Offshore Equipment: An offshore hydraulic filter is used in hydraulic systems exposed to demanding operating environments and continuous industrial duty.
  • Injection and Forming Machinery: Hydraulic filtration can support equipment where precise hydraulic control and component protection are important.
  • Material Handling Equipment: Hydraulic filters can be used in lifting, handling, and movement systems to help maintain fluid cleanliness.
  • Power and Industrial Systems: Hydraulic filtration is suitable for industrial hydraulic circuits where contamination control contributes to dependable equipment operation.

Why Choose Us?

As one of the leading Hydraulic Filters in India, we deliver premium-quality solutions designed to meet diverse industrial requirements. Here's why we stand out:

  • Application-Focused Filtration: We consider the hydraulic circuit, operating conditions, contamination requirements, and installation location when developing filtration solutions.
  • Quality Filter Components: Our solutions can incorporate suitable hydraulic filter elements, housings, indicators, valves, and filtration media for the intended application.
  • Technical Selection Support: We help customers evaluate micron rating, flow capacity, pressure drop, element configuration, and other important selection parameters.
  • Flexible Configurations: We support pressure line, return line, suction, offline, bypass, and other hydraulic filtration arrangements according to application requirements.
  • Reliable Service: We focus on practical filtration solutions that support hydraulic fluid cleanliness, equipment protection, and consistent system operation.

Choose ABC Filters Pvt. Ltd. Is leading Hydraulic Filter Manufacturers, Suppliers, Dealers and Exporters in India. A properly selected hydraulic filter plays an important role in controlling contamination and maintaining the cleanliness of hydraulic fluid. Selecting the correct filter location, element, media, micron rating, flow capacity, housing, and pressure characteristics is essential for effective hydraulic filtration. We provide hydraulic filtration solutions designed around application requirements, helping customers select suitable filter assemblies and replacement elements for industrial and mobile hydraulic systems. With appropriate selection, monitoring, and maintenance, hydraulic filtration can contribute to cleaner fluid and dependable hydraulic system performance.

FAQs

A hydraulic filter removes particulate contaminants from hydraulic fluid to help protect pumps, valves, cylinders, motors, and other hydraulic components.

Common types include pressure line filters, return line filters, suction filters, offline filtration systems, bypass filtration systems, and duplex filters.

The micron rating describes the filtration capability of a filter in relation to particle size. The rating should be considered together with the filter's tested performance.

Nominal and absolute ratings use different approaches to describe particle retention. Actual filter performance should be evaluated using appropriate test data rather than the micron number alone.

Beta ratio compares the number of particles upstream and downstream of a filter at a specified particle size and is used to characterize filter retention performance.
